AERIAL LIFTS

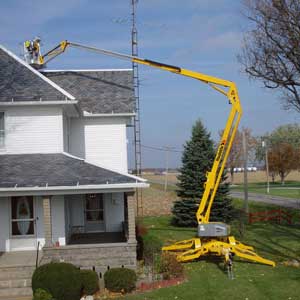

45' Towable Booms
• Max Working Height 51'
• Max Platform Height 45'
• Horizontal Reach:
From Centerline 27'
From Outriggers 21'
• Lift Capacity 500 lbs
• Tows with 2" Ball.
• Weight 4200 lbs.
35' Towable Booms
• Max Working Height 41'9"
• Max Platform Height 35'9"
• Horizontal Reach:
From Centerline 22'6"
From Outriggers 17'5"
• Lift Capacity 500 lbs
• Tows with 2" Ball.
• Weight 3400 lbs.
Skyjack 19' Scissors
• Max Platform Height 19'
• Extension Deck 3' (250# Cap)
• Overall Width 32"
• Total Lift Capacity 500 lbs.
• Slab Use Only
• Weight 3255 lbs.
Genie 26' Scissors
• Max Platform Height 26'
• Extension Deck 3' (250# Cap)
• Overall Width 32"
• Total Lift Capacity 500 lbs.
• Slab Use Only
• Weight 4407 lbs.
Genie Superlift Material Lifts
• Max Platform Height 21'
• Stowed Height 6'7"
• Operating Width 6'7"
• 600# Lift Capacity (18" Center)
• Weight 405 lbs.
